Used Struthers Wells Process Equipment

Phoenix Equipment has a large inventory of used, unused, and reconditioned equipment from Struthers Wells. Phoenix Equipment offers a wide selection of categories from Struthers Wells. If you can't find the exact Struthers Wells equipment you are looking for, contact us and we can help you find it.

Categories
Featured Equipment for Sale
8000-gal-316elc-stainless-steel-struthers-wells-crystallizer-evaporator
8000 Gal 316ELC Stainless Steel Struthers Wells Crystallizer / Evaporator
Stock# 16798 Capacity 8000 Gal

Used 8000 Gallon Crystallizer. Mfr Struthers Wells. Model: Krystal. Cooling type crystallizer. Constructed of 316 ELC stainless steel, design pressure -15 PSI external full vac @ 200 deg. F. and 20 PSI internal @ 250 deg. F. Suspension chamber measures 10' outside diameter x 9' straight side, 6' cone bottom. 38" center top nozzle, 20" top side manway, 24" side manway, top head thickness 3/8" and bottom head and shell thickness of 5/16". Complete with Lightnin agitator (coil has been removed). Agitator driven by 7.5 HP motor, 67 output RPM on shaft, shaft includes (2) 3-blade paddles. National Board #324. Serial# V-1404. Built 1967.

7596-sq-ft-struthers-wells-stainless-steel-shell-tube-heat-exchanger

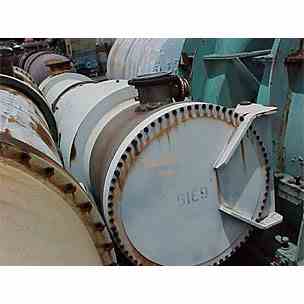

7596 Sq Ft Struthers Wells Stainless Steel Shell & Tube Heat Exchanger
Stock# 2605 Capacity 7596 Sq Ft

7596 Sq Ft (Mfd by Struthers Wells) horizontal shell & tube heat exchanger, CS shell rated 167 PSI @ 350 degrees F. (1759 Tube holes) 3/4" 304-SS tubes rated 222 PSI @ 275 degrees F., 22' long. Shell dia: 4'. Shell nozzles: (2) 18", Tube nozzles: (2) 10". 304L-SS Heads. Passes: Shell (1), Tubes (6). No of Baffles: 16, Baffle spacing: 28. Type: CEM, w/ (2) steam chest & expansion joint. NB: 7751. Previous Use: Absorber Water Chiller

1820-sq-ft-struthers-wells-stainless-steel-shell-tube-heat-exchanger

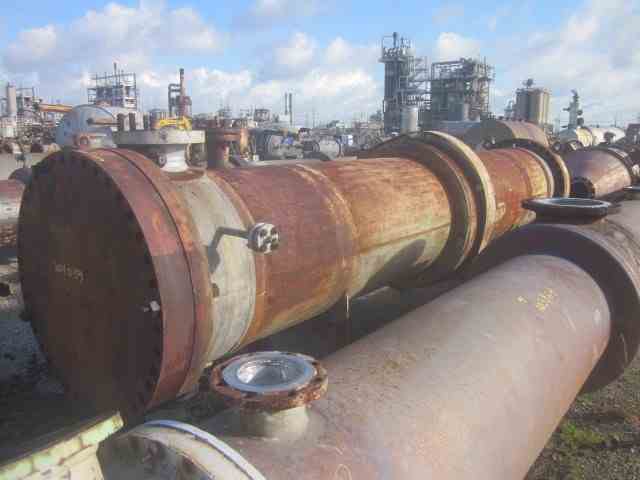

1820 Sq Ft Struthers Wells Stainless Steel Shell & Tube Heat Exchanger
Stock# 15760 Capacity 1820 Sq Ft

Used 1,820 Sq Ft Shell & Tube Heat Exchanger. Shell material is CS, tube and head are 316SS. Shell is rated for 200 psig @ 600 F; tube is rated 600 psig @ 600 F; there are 348 tube holes; tube wall is .065”. Shell has 1 pass, tubes have 12 passes. (2) 4” shell nozzles; (2) 8” tube nozzles. 30 baffles with a baffle spacing of 5.75”. Shell diameter is 3’2”; overall length is 19’5”. National Board number is 481. Built in 1967.
