Used Stokes Process Equipment

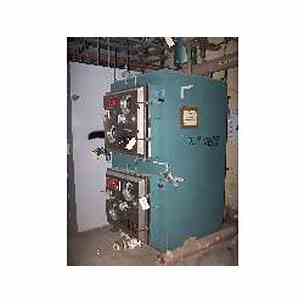

Used Dual Stokes stainless steel vacuum shelf dryers model 338D-4. Stacked system contains 2 shelf dryers each with single door with (2) 6" sight glasses. Internal rated @ FV with max temp of 200 degrees F. Jacket rated 50 psi. Each dryer contains (4) shelves rated 50 psi @ 650 degrees F. Each shelf is National Board stamped. Shelves measure 24" wide x 36" deep. Unit can be arranged so that each oven is controlled individually. The overall dimensions including the inlets and outlets are 89" tall X 55" wide X 72" deep

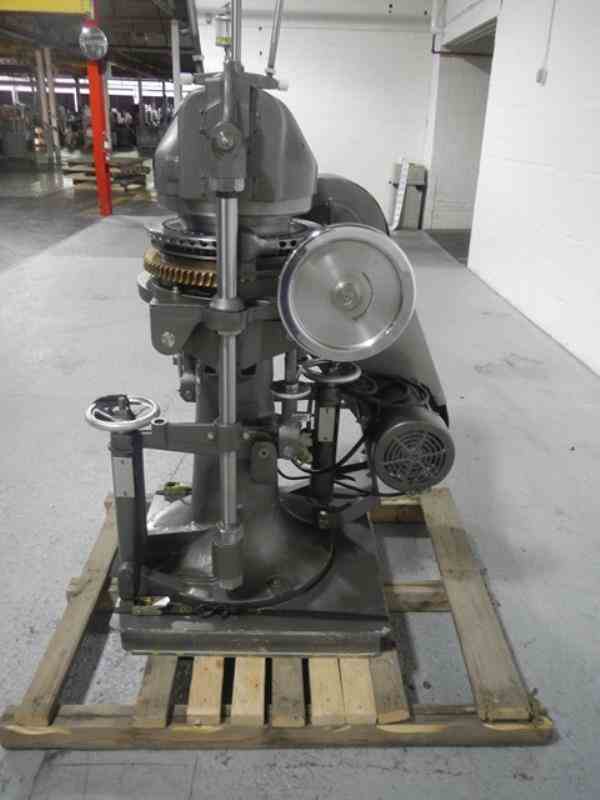

Used Stokes Model 328-2 rotary tablet press, 33 station, 10 ton compression force, 1 3/16" max. tablet diameter, 1 3/8" max. depth of fill, keyed upper punch guides with feed hoppers and frames, stainless steel enclosure, rated up to 3300 tablets/minute, serial# 690016.

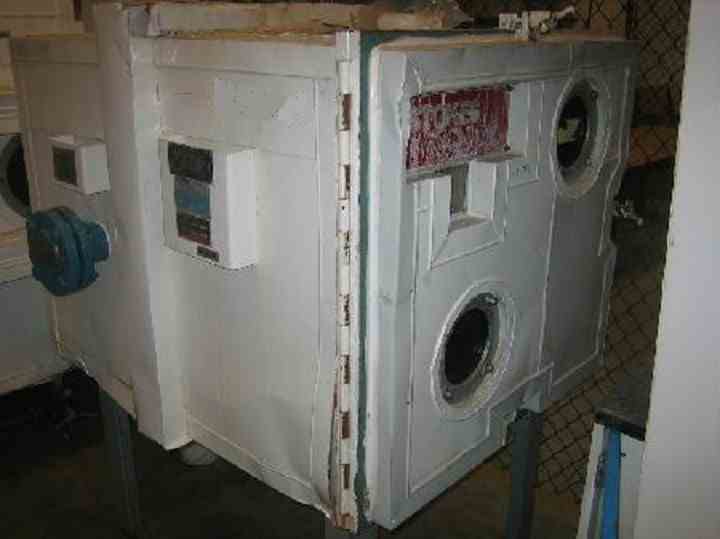

Used Stokes 36 sq ft vacuum shelf dryer system. All contact parts are carbon steel coated with 0.25" thick FEP Teflon. Model # 338D-6, serial number CO-73511. Built 1991. Chamber: Designed for vacuum service only, standard service to 100 microns, Weight 2350 lb (dryer with shelves). 7 total shelves (6 usable) are 2' w x 3' deep with 2.5" spacing, rated 50 PSI (steam). Door is 304 stainless with FEP Teflon coated interior and #4 exterior finish. Hot Oil Unit: Heat Transfer Systems Model #WM450-9EP (sn J4470), built '91. Flow limits 30 gpm - 120 gpm max, temp 35 - 450 deg F, weight 550 lbs. Vac System: SIHI Liquid Ring pump model LPHB 45312 BN 117080, sn #3269861, built 1991. 7.5 HP 3/60/208v @ 1,755 RPM motor.

USED STOKES MODEL 338-D6 APPROXIMATELY 36 SQUARE FOOT HERESITE LINED VACUUM SHELF DRYER. VACUUM INTERNAL @ 250°F. WITH (6) SHELVES 30" DEEP X 36" WIDE.

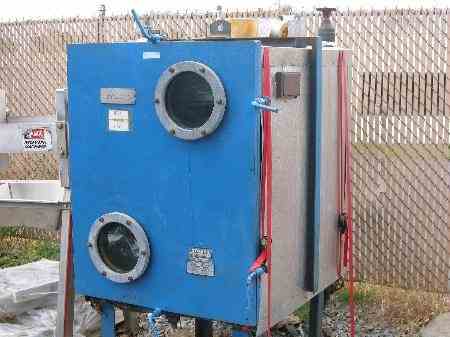

USED STOKES MODEL 338-F-8 STAINLESS STEEL TRAY DRYER. (7) SHELVES. 36" X 42" DEEP X 5 TRAYS. RATED 65 PSI @ 650°F.
