Used Rosenmund Process Equipment

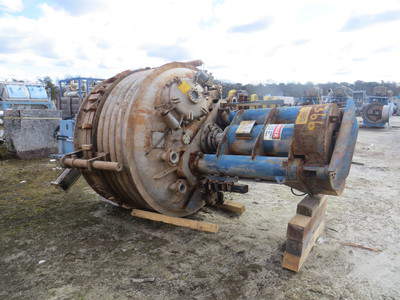

Used 2.5 Square Meter Hastelloy C Rosenmund Filter (565 gallon capacity). Model # 91-RF-201. Rated 50 psi/FV @ -20/370 F. Manufactured by Gaston. 1/2 pipe coil jacket. 87" length, 74" OD. Center bottom discharge. Hydraulic lifting system. Packing gland. Serial # RPD2.5-669-92 (Gaston serial # F80933-192-1, National Board # 22913, Built 1992. Estimated weight - 13,000 lbs.

Used 2.4 Sq. Meter 316 Stainless steel Rosenmund Agitated Nutsche Filter/Dryer, rated 50 PSI and full vacuum internal @ 302 degrees F, 1/2 pipe jacket rated 100 PSI @ 302 degrees F. 7' L X 7'W X 13' H. Bottom discharge with center bottom outlet. Hydraulically driven with 5 HP pump. Gaston County serial# F-41308-1081-1, national board# 15908, Rosenmund serial# RND2.4-279-82, new 1982.

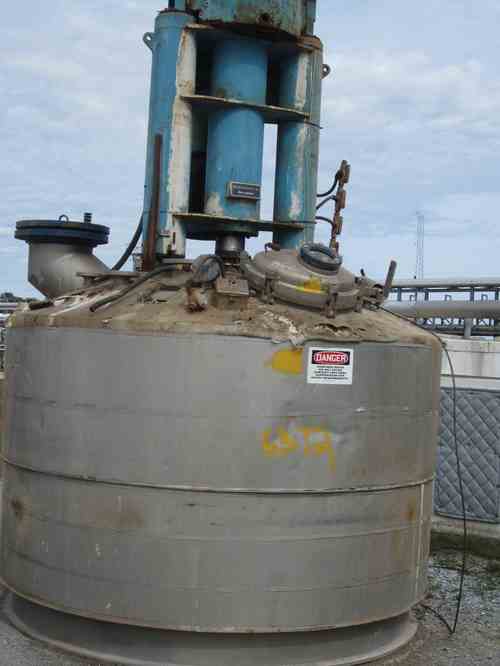

Used 4 Square Meter 316L Stainless Steel Rosenmund Inc Nutsche Type Filter Dryer. Internal rated 50psi/Fv at -20/370 F; 304 Stainless Steel 1/2 pipe jacket rated 150psi/Fv at -20/370 F; Base rated 150psi/Fv at -20/370 F. Driven by 25 HP 3/60/460V @ 1800 RPM agitator motor and 3HP hydraulic pack motor. Shell dimensions - 8 ft x 79 inches. Packing gland. Control panel available. Altered by Gaston (6/6/2002), SO # Fb2242A. Serial # RPD4-580-90, Built 1990. Estimated weight - 24,000 lbs.

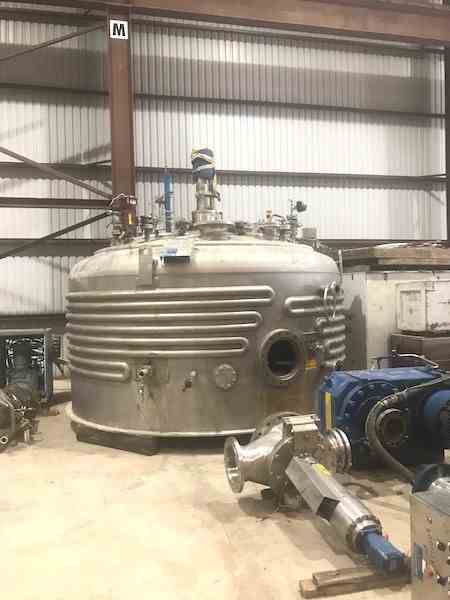

Used 10m3 316L Stainless Steel Nutsche Filter Dryer. Mfg Rosenmund. Shell Rated 60PSI/FV@370F. Jacket rated 150PSI/FV. Serial #10-952-97. Built 1997.

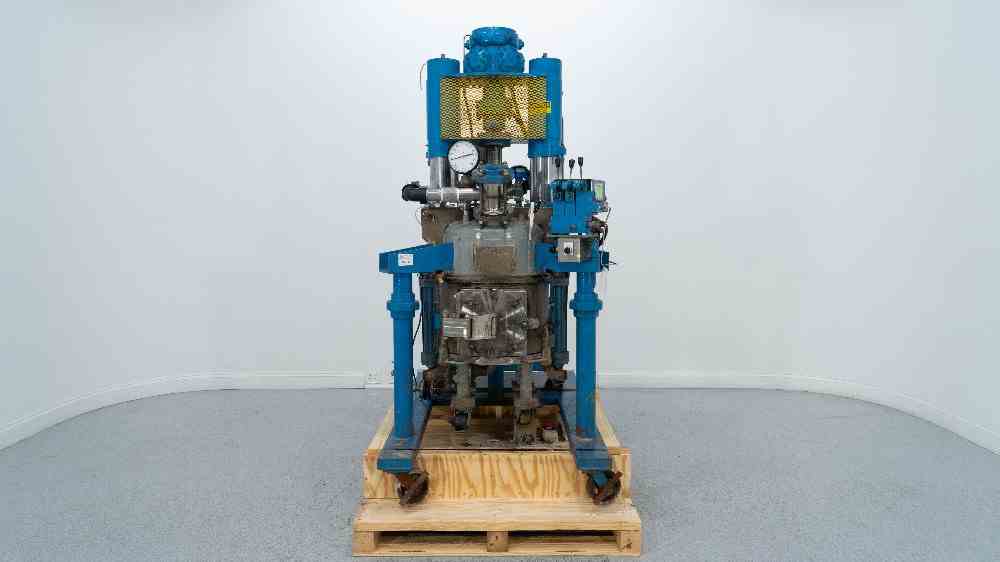

Used 0.2 Sq M Filter Dryer. Mfr Rosenmund Process Equipment. Model Side Discharge. Vessel MAWP 90PSI/FV@350F. Jacket 90PSI @350F. Hydraulic agitation and cylinder for bottom chamber access. National Board stamp. Serial #RSD0.2-529-89. Built 1989.

Used 6 sq meter Stainless Steel Nutsche Filter. Manufatured by Rosenmund. Type RPD6. Model Paddle. Internal rated 50 PSI @350 F.Jacketed on side and bottom rated 150PSI @366F. Motor driven paddle rake agitator with hydraulic lift/lower unit. Serial# F8002-688-1. National Board# 19843. Built 1988.
