Steam Turbine Generator Control Panel

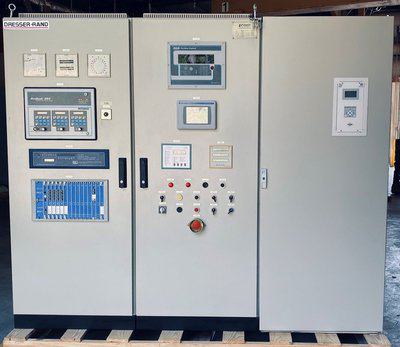

Used Free standing indoor steam turbine generator protection and control panel consists of following:
-Woodward 505E extraction steam turbine Governor P/N 9907-167 Rev N, S/N 14364524
-Woodward Protech 203 Overspeed protection system P/N 9907-345 Rev K, S/N 14369757
-Woodward DSLC Digital synchronizer and load control P/N 9905-603 S/N 13513447
-Woodward Servo position controller P/N 8200-226 S/N 14416752 FOR hp valves
-SEL-300 G Generator management relay P/N 0300G303225X112
-SEL 2500A Generator RTD monitor
-Syncheck relay
-Duel Voltmeter Bus side and Generator side
-Duel Frequency meter Bus side and generator side
-Automatic voltage regulator DECS-200-1C, S/N H00820473 R V
-Voltage regulator interface programmer (GIP) Need not use
-ABB IDM 144 Power meter Digital indicating active and reactive power, current, power factor. Volts
-Bently Nevada 3500 Vibration Monitoring
-Kraus & Naimer RCB type C26LM lockout relay
-Allen-Bradly Panelview plus 700 HMI (Human Machine Interface)
-Allen-Bradly PLC model SLC-500
-Switches
Turn on syncheck, lower/raise speed, lower/raise voltage, open/close field contactor(excitation),
AVR manual/auto mode, synchronism select mode
-Push buttons
Emergency, Protection reset, lamp test, silence Horn, Spare, Open Breaker(52G)
-Lights/indicators
Siren, Field contact closed, Breaker closed (52G)
-Cabinet lighting (120 VAC)
-AC and Dc circuit breakers for control power protection
-Auxiliary contactors
-Terminal blocks
-Field contactor
-Heaters
