Used Outotec Process Equipment

Phoenix Equipment has a large inventory of used, unused, and reconditioned equipment from Outotec. Phoenix Equipment offers a wide selection of categories from Outotec. If you can't find the exact Outotec equipment you are looking for, contact us and we can help you find it.

Categories
Featured Equipment for Sale
1033-sq-ft-outotec-plate-frame-filter-press

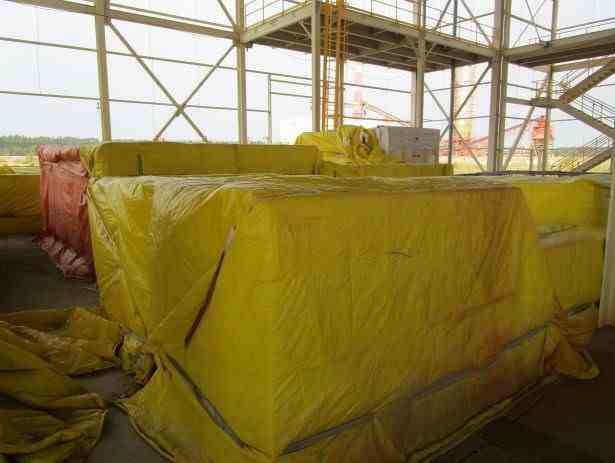

1033 Sq Ft Outotec Plate & Frame Filter Press
Stock# 19764 Capacity 1033 Sq Ft

Unused 1033 sqft vertical pressure filter press. Manufactured by Outotec (Larox). 23,500 KG/HR Dry Solids Capacity. 5.76 Cubic Meters Chamber Volume. 60 mm Chamber Height. 316 Stainless Steel Wetted Parts. 16 Filter Plates. 1500 mm X 4010 mm Plate Size. 16 Bar Maximum Pressure. 7935 mm x 5470 mm x 5860 mm Main dimensions (L x W x H). 1700 mm x 95.5 mm Filter Cloth (W x L). 110 kw, 1800 rpm, 575 Vac, 3-phase, 60 Hz Hydraulic unit motor (M1HU). 15 KW, 1800 rpm, 575 Vac, 3-phase, 60 hz Hydraulic Oil Cooler Motor (M3HU). 3 KW, 575 Vac, 3-phase, 60 Hz Hydraulic Oil Heater (R1HU). Model # PF 96/96 M48-2-60. Built in 2014.

17-sq-ft-outotec-pf1-6-pressure-leaf-filter
17 Sq Ft Outotec PF1.6 Pressure Leaf Filter
Stock# 20902 Capacity 17 Sq Ft

Used 17 Sq ft Outotec Larox PF pressure filter unit. Model PF 1.6. Type PF1.6712.6 C1.62 45. Operating pressure up to 16 bar. Filtration area 1.6 sq m (17 sq ft). (1) polypropylene filter plate sized 900x1750mm cloth covered. Includes pressing hydraulic unit with 250L reservoir and pressing water pump with 500L tank. Recessed plates and diaphragms. Steel skid mounted 141" x 142" x 78" tall. Serial # 1020. Built 2011.

850-gal-outotec-slurry-tank-skid

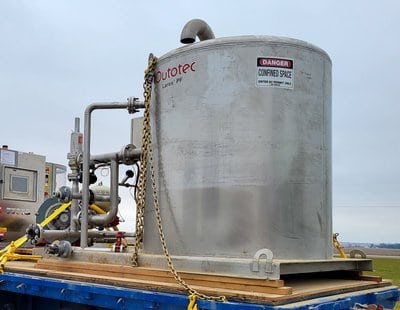

850 Gal Outotec Slurry Tank Skid
Stock# 20977 Capacity 850 Gal

Unused 850 gallon Slurry tank system consisting of skid with vertical stainless steel tank, SS skid size is 98" x 68" x 84" tall. Atmospheric tank 5 ft dia x 6 ft H. Flat bottom, dish top with hinged manway lid. (2) 15 HP Grundfos pumps. 90 gpm at 528 ft hd. Model A96127009-P11101551. Supplies pressing water to Outotec Larox PF1.6 filter system. Built 2011.

outotec-15-hp-stainless-steel-peristaltic-pump

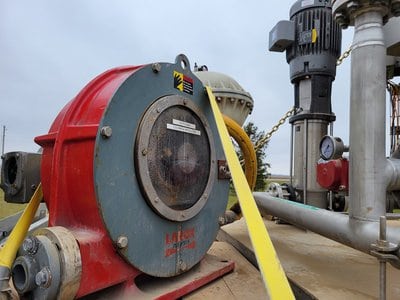

Outotec 15 HP Stainless Steel Peristaltic Pump
Stock# 20976 Capacity 15 HP

Unused 15HP HP Larox Flowsvs peristaltic pump. Model LPP-T40. Capacity 0.33 gpm / revolution 150 psig max (max flow 35.2 gpm). Hose connections 1.5". Size 1070 wide including motor x 742 deep x 664 tall. SEW gearmotor model KAF67 at 5.5 KW (7.5 HP). Built 2011.

1000-hp-outotec-ball-mill
1000 HP Outotec Ball Mill
Stock# 21632 Capacity 1000 HP

Unused 1000 HP Ball mill. Manufactured by Outotec. 10'5"D x 12'4"L (3.2m x 5.6m). EGL 4.6m. 2-pc Girth gear (280) tooth. (19) tooth pinion gear. Media charge 40%. Interstitial Vol: 40%. 1000HP WEG 3ph induction motor - squirrel cage. 1794 RPM. W50 7006/07 frame. 60Hz, 4160V. Rubber liners. Serial #17-16-PM. Built 2018. (2) available.
