Used Pfaudler Process Equipment

Used approx 500 gallon Pfaudler, Model CV48-500-50, Glass Lined Tank. 48” dia x 58" straight side. Rated 50 PSI @ 450 deg F. Glass 5019. Originally built 1980, Serial # E280-0446, National Board # 39539. Top Nozzles: 12 x 16" Manway, (6) 3". Repaired by Pfaudler 1989 (and reportedly unused since). Repair # R690-8045. Note: Missing manway cover.

Used 4000 gallons glass lined reactor. Manufactured by Pfaudler. Shell rated 100 PSI @450F. Jacket rated 90PSI/FV@450F. (6) Leg mounted. 18" Top manway. 4" Bottom outlet. National Board #47860. Serial #R194-0063. Built 1995.

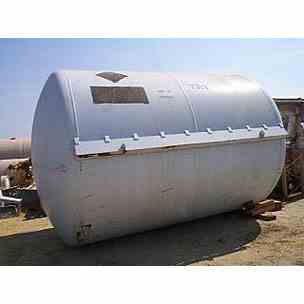

8,000 gallon Pfaudler horizontal glass lined storage tank. Rated 25 PSI @ 550 F internal. 120" diameter x 145" long. Welded dished top and bottom.

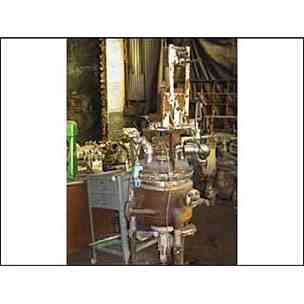

Used 10 gallon Pfaudler Reactor, stainless steel construction, rated 100 PSI at 650 degrees F internal, 100 PSI at 650 degrees F jacket, 14" diameter x 12" straight side, clamp on removable top head, dish bottom, misc. top nozzles, 1 1/2" center bottom outlet, complete with hydraulically driven agitator drive, anchor style agitator, on pipe legs, National Board No. 8016.

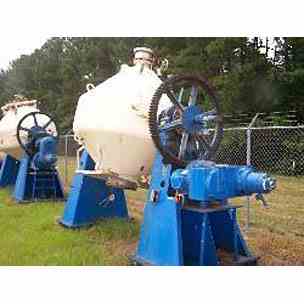

Used 70 cubic feet working capacity Pfaudler glass lined double cone vacuum dryer. 78" diameter shell. Vessel 9115 (Blue) glass. 18" top manway. 8" center bottom discharge. Internal rated 30/FV @ 450 F. Jacket rated 50 PSI @ 350 F. Model 72-45-CD. Built 1997. Mounted on stand. (NOTE: Unit has 1 plug and some glass damage on manway cover)

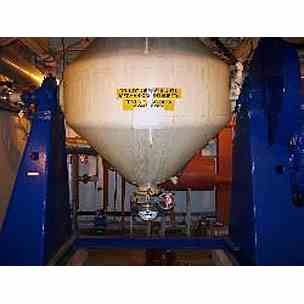

Used 70 cubic feet working capacity Pfaudler glass lined double cone vacuum dryer. 6' diameter shell. Model 72-45-CD. Glass #3115. Internal rated 30/FV @ 450 F, carbon steel jacket rated 50 PSI @ 350 deg F. 18" diameter top manway, 8" center bottom discharge. Mounted on stand. Driven by 5 HP motor 3/60/230, 460 volt, 3-5 RPM with brake. Mfr No. R585-3056, NB # 43982. Built 1986. (Unit has 1 Pfaudler Plug)
