Used Melter SA de CV Process Equipment

Phoenix Equipment has a large inventory of used, unused, and reconditioned equipment from Melter SA de CV. Phoenix Equipment offers a wide selection of categories from Melter SA de CV. If you can't find the exact Melter SA de CV equipment you are looking for, contact us and we can help you find it.

Categories
Featured Equipment for Sale
1979-sq-ft-melter-sa-de-cv-stainless-steel-shell-tube-heat-exchanger

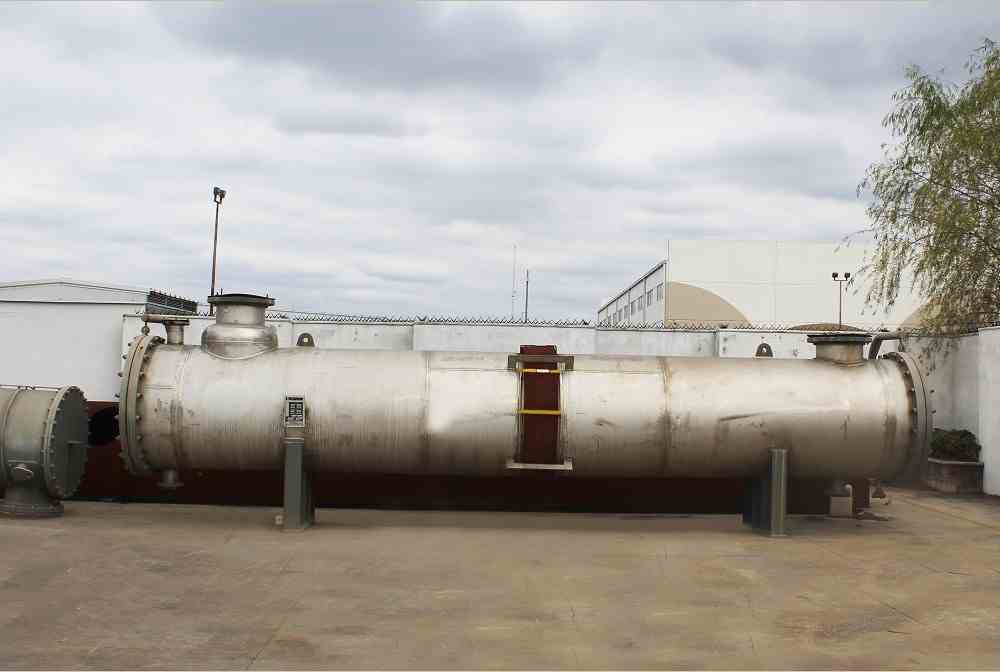

1979 Sq Ft Melter SA de CV Stainless Steel Shell & Tube Heat Exchanger
Stock# 16317 Capacity 1979 Sq Ft

Unused 1979 sq. ft. Melter SA de CV Shell & Tube Heat Exchanger. 1 pass shell side. 12 pass tube side. Type NEN, Horizontal. Stainless steel shell rated 120 psi / F.V. at 250 degrees F. (252) 1-1/4” O.D. x 24’ long. 16 BWG (0.065” AW) 304 stainless steel tubes rated 150 psi at 250 degrees F. 304 stainless steel expansion joint (bellows). 304 SS tubesheet. Openings shell (2) 20” and (1) 6”, opening for tubes (2) 6”. Flat bolt on stainless steel linner ends with davit arms. Mounted on carbon steel saddles. Serial# MDI-333-6. National Board #225. Built 2007.

2225-sq-ft-melter-sa-de-cv-stainless-steel-shell-tube-heat-exchanger
2225 Sq Ft Melter SA de CV Stainless Steel Shell & Tube Heat Exchanger
Stock# 16318 Capacity 2225 Sq Ft

Unused 2225 sq. ft Melter SA de CV Shell & Tube Heat Exchanger. 1 pass shell side. 1 pass tube side. . Type NEN, Vertical. Carbon steel shell rated 100 psi / F.V. at 500 degrees F. (850) 1” O.D. x 10’ long. 18 BWG (0.049” AW) 304 stainless steel tubes rated 80 psi at 325 degrees F. 304 stainless steel expansion joint (bellows). 304 SS tubesheet. Openings shell (1) 16” and (1) 20”, opening for tubes (1) 6” and (1) 8”. Flat bolt on carbon steel ends. Mounted on carbon steel supports. Serial #MDI-333-15. National Board #224. Built 2007.
