Used Louisville Process Equipment

Phoenix Equipment has a large inventory of used, unused, and reconditioned equipment from Louisville. Phoenix Equipment offers a wide selection of categories from Louisville. If you can't find the exact Louisville equipment you are looking for, contact us and we can help you find it.

Categories
Featured Equipment for Sale
136-dia-louisville-rotary-steam-tube-dryer
136 " Dia Louisville Rotary Steam Tube Dryer
Stock# 17059 Capacity 136 " Dia

Unused 136" Dia Rotary Steam Dryer. Mfg Louisville Dryer Co. Overall 136"D x 60'L. Screw fed. Feedstock: Hemp. Feed rate 22620 lb/hr @75% moisture. 150 PSIG Dry saturated steam pressure. product rate 5952 lb/hr @5% moisture. Driven by 480V TEFC motor with Gear reducer. (2) 100HP Exhaust Fans. Spare trunnion, pinion, and thrust roll assemblies, Reducer and Kevtex discharge belt seal.

54-dia-louisville-rotary-steam-tube-dryer

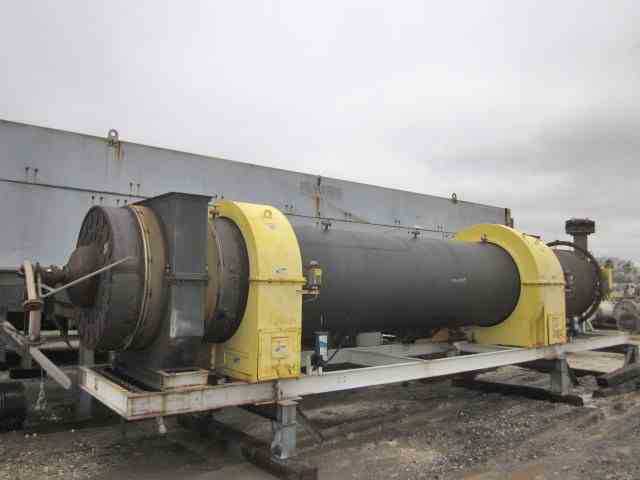

54 " Dia Louisville Rotary Steam Tube Dryer
Stock# 14702 Capacity 54 " Dia

Used Steam Tube Dryer. Coal flow 5190 lb./hr. 54” Shell ID. 326” length. Tubes (18) 4” Sch. 80, (18) 2.5” Sch. 160. Heat medium steam 412F. Medium flow-rate 2205 lb./hr. / Max. 4409 lb./hr. Heat Duty 1.71 MMBTU/H. Shell material SA-516 GR70. Tubes material A-106B. Design Pressure 320 PSIG. Design Temp. 400 F / 455 F. Rated Power: 30 HP Variable Speed Drive. Includes #L-202 Dryer Inlet Screw Conveyor. H-screw feeder. Rota speed 25 RPM. Feeder Dia./Length 9 IND/ -INL. Rated Power 1 HP. Heat transfer area 1025 sq. ft. Dryer slope 1:100. ½” Thick Shell. Mfg. by Tsukishima (Louisville). Built in 2013.

38-dia-louisville-rotary-steam-tube-dryer

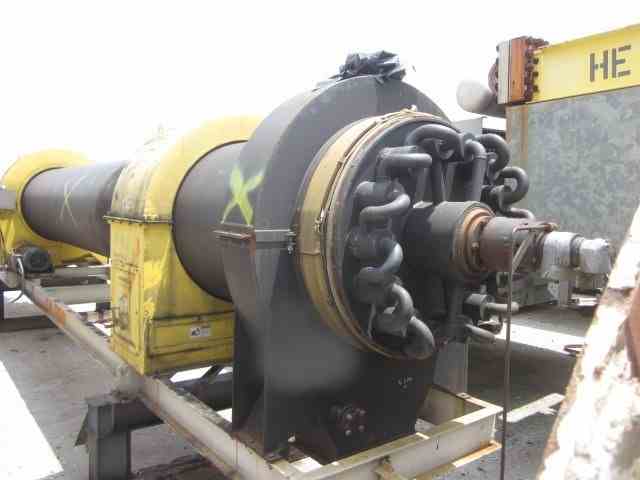

38 " Dia Louisville Rotary Steam Tube Dryer
Stock# 14703 Capacity 38 " Dia

Used Rotary Water Tube Quencher. 38” W x 30’0” L. Coal flow 2,750 LB/HR. Design Pressure 4 INWG (shell) / 85 PSIG (tube). Design Temperature 340 F (shell) / 140 F (tube). Rated 10 HP Variable Speed Drive. Included L-401 Quencher 2 Inlet Screw Conveyor, Max Shell Rotation Speed 10 RPM. Shell Slope 1:100. Heat Transfer Area 495 Sq. Ft. ½” Thick Carbon Steel Shell. Outer Tubes (14) 4” Sch. 80 CS (4.5” OD x 0.337” Thick). Inner Tubes (14) 2.5” Sch. 40 CS (2.875” O.D. x 0.203” Thick).

1130-sq-ft-louisville-stainless-steel-shell-tube-heat-exchanger
1130 Sq Ft Louisville Stainless Steel Shell & Tube Heat Exchanger
Stock# 17060 Capacity 1130 Sq Ft

Used 1130 Sq Ft 304L Stainless Steel Shell and Tube Heat Exchanger. (148) .75" tubes rated 150PSI@300F. Shell rated 150PSI/FV@300F. National board rated. Built 2012.
