Used Mueller Process Equipment

Phoenix Equipment has a large inventory of used, unused, and reconditioned equipment from Mueller. Phoenix Equipment offers a wide selection of categories from Mueller. If you can't find the exact Mueller equipment you are looking for, contact us and we can help you find it.

Categories
Featured Equipment for Sale
940-sq-ft-mueller-stainless-steel-plate-heat-exchanger

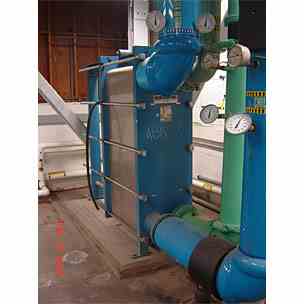

940 Sq Ft Mueller Stainless Steel Plate Heat Exchanger
Stock# 2629 Capacity 940 Sq Ft

Used 940.4 Sq. Ft. Mueller 304 Stainless Steel Accu-Therm Plate Heat Exchanger, Model AT40 Frame Type B-20. Rated 75 psi @ 150 deg F. 192 Plates - 0.5MM, 304-SS. Carbon steel frame. Serial # 224225-01, National Board # 29165, Built 1999.

1085-sq-ft-mueller-stainless-steel-plate-heat-exchanger

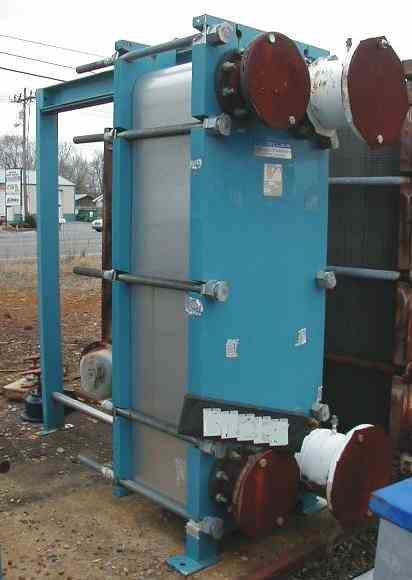

1085 Sq Ft Mueller Stainless Steel Plate Heat Exchanger
Stock# 5349 Capacity 1085 Sq Ft

Used 1085 Sq. Ft. Mueller SS Plate Heat Exchanger, Hot side 6" flg., Cool side 8" flg. Unit has 122 plates, plate model is AT80-M, material is 304-SS, gasket material is NBR (nitrile buatine rubber) Unit is a narrow gap, wide gap is their Free Flow design. Max Pressure 150PSI@150F. Wide gap plate model number is 40N161. Built 1995. Model No. AT80B-20, S/N: 171130-1, NB# 24924.

2000-gal-mueller-pressure-vessel

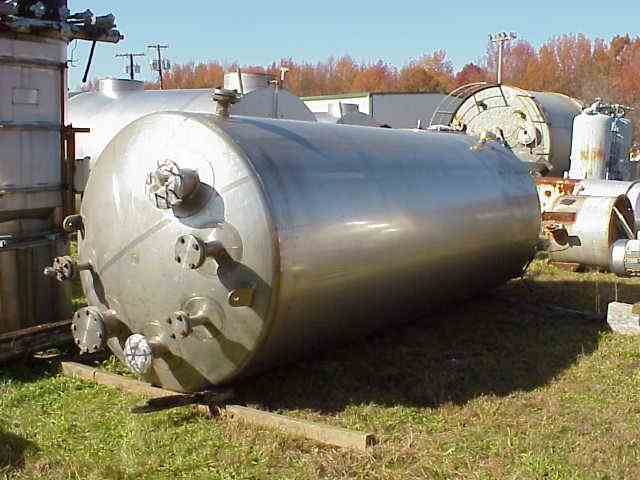

2000 Gal Mueller Pressure Vessel
Stock# 8403 Capacity 2000 Gal

Used MUELLER 2000 gallon, 304-SS Jacketed Vessel. Vertical. Internal Rated 40 PSI (15.27 in.Hg. Vacuum) @ 210 F. Jacket rated 90 PSI @ 210 Deg. F. Jacket Volume –2.34 CU. FT. 60" ID x 14' Straight side. S/N: 175160–2, NB# 25604.

170-liters-mueller-fermenter-bioreactor

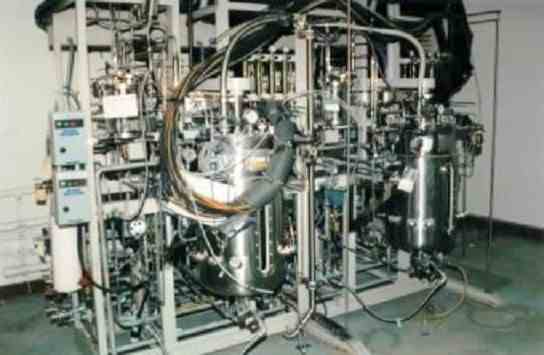

170 Liters Mueller Fermenter / Bioreactor
Stock# 9457 Capacity 170 Liters

Used Approx 45 Gal Mueller Fermentation system with Marubishi co. Ltd. controls. System includes twin Mueller 90 liter fermenters, 316 polished stainless steel tanks, each rated 50 PSI/FV internal @ 137 deg. C. Internal, jacket for 50 PSI @ 137 deg. C., equipped with 5 HP V-belt top agitator drives. System includes all inter-connecting piping, pumps, prefilters and main control panel. New in 1988. Excellent condition.

5732-sq-ft-mueller-stainless-steel-plate-heat-exchanger
5732 Sq Ft Mueller Stainless Steel Plate Heat Exchanger
Stock# 15697 Capacity 5732 Sq Ft

Used Mueller Stainless Steel Plate & Frame Heat Exchanger. 5732 sq/ft of surface area. Rated for 150 psig at 190 F, minimum design metal temeperature of 32 F at 150 psig. 370 plates in total. Built in 2012.
