Used IMO Delaval Process Equipment

Phoenix Equipment has a large inventory of used, unused, and reconditioned equipment from IMO Delaval. Phoenix Equipment offers a wide selection of categories from IMO Delaval. If you can't find the exact IMO Delaval equipment you are looking for, contact us and we can help you find it.

Categories
Featured Equipment for Sale
11-mw-imo-delaval-steam-turbine-generator
11 MW IMO Delaval Steam Turbine Generator
Stock# 12124 Capacity 11000 KW

Used 11 MW (11,000 KW) IMO DELAVAL, Model HJ-MV-SF-SAE, Steam Turbine Generator. 9 stages.Stage Number 9. Speed 8,936 rpm. Rating 10,695 KW. Steam Pressure 645 PSIG. Generator: Manufacturer Electric Machinery (Dresser), Type Enclosed Water Cooled, Voltage 4,160, Frequency 60 Hz, Rating 12,222 KVA, 11,000 KW, Power Factor 0.9 Speed 1,800 rpm. Gear: Manufacturer Philadelphia Gear, Type Single Reduction Parallel Axis, Model 17HSA, Rating, 14,751 KW / 11,000 KW, Service Factor 1.3, Point Speed 8,936 rpm, Gear Speed 1,800 rpm, Ratio 4.964:1. Built 1988.

39000-kw-imo-delaval-steam-turbine-generator

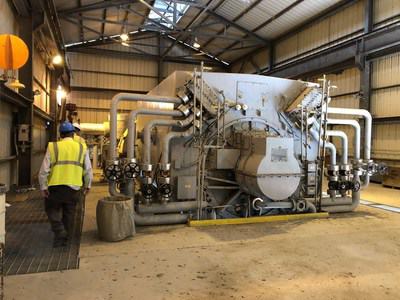

39000 KW IMO Delaval Steam Turbine Generator
Stock# 16717 Capacity 39000 KW

Used 39 MW (38,952 KW) Imo Delaval Model # MJSF Steam Turbine Generator. Speed 3,600 RPM. Inlet Steam Pressure – 530 psig. Inlet Steam Temperature – 750 F. Throttle Flow – 400 lb/hr. Exhaust Pressure – LB/HR 3” HGA. Serial No. 708523. Generator Manufacturer Electric Machinery (Dresser). KVA Rating – 47,700. Voltage – 13,800. Frequency – 60 Hz. KW Rating – 40,545. Power Factor – 0.85. 3 Phase. Serial No. 187374101.
