Used Solar Process Equipment

Used 4 MW Solar Centaur Type H Gas Turbine Generator Set model GSI-CH-ID, designed for to operate on kerosene, built 1986. Fully enclosed. 3/60/4160V. Auxiliaries included: Lube oil coolers, fire cylinder cabinet, neutral ground resistor, switchgear, Air intake housings, oil filter skids, exhaust spool pieces, turbine exhaust stacks, air filters, rain hood skids, air intake ducts, oil heater skids, air tank (approx 8,000 gal, 562 psi). Package Serial # HG86O16, Engine Serial # 0021H53. approx 1400 package starts / 3,300 package hours / 1400 engine starts / 3300 hours.

Used 4 MW Solar Centaur Type H Gas Turbine Generator Set model GSI-CH-ID, designed for to operate on kerosene, built 1986. Fully enclosed. 3/60/4160V. Auxiliaries included: Lube oil coolers, fire cylinder cabinet, neutral ground resistor, switchgear, Air intake housings, oil filter skids, exhaust spool pieces, turbine exhaust stacks, air filters, rain hood skids, air intake ducts, oil heater skids, air tank (approx 8,000 gal, 562 psi. Unit 2: Package Serial # HG86O17, Engine Serial # 0022H53. approx 1400 package starts / 3,000 package hours / 1400 engine starts / 3000 hours

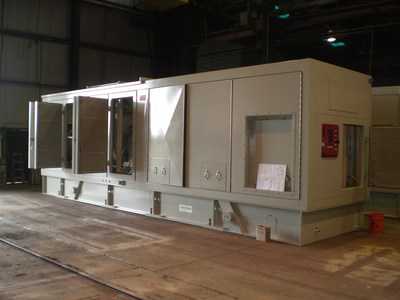

Used 5200 KW Solar Taurus 60 T7301 housed generating set, 3/60/4160V set up to operate on landfill gas or natural gas, manufactured in 2001, used until 2007 and stored under Solar care since. Generator rebuilt. Borescope inspection reports available upon request. Auxiliaries included: Lube oil coolers, fire cylinder cabinet, neutral ground resistor, switchgear, Air intake housings, oil filter skids, exhaust spool pieces, turbine exhaust stacks, Donaldson air filters, rain hood skids, air intake ducts, oil heater skids. (Qty 2 Available)

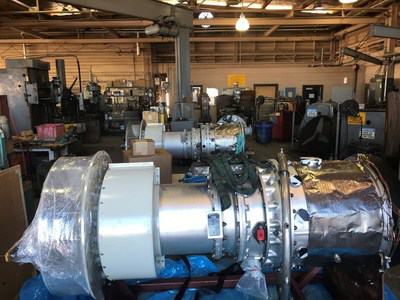

Used 3200 KW Solar Centaur T4701 Wet NoX Gas Turbine Generator Set. Model GC1-CB-ID. Engine Serial #3963C51. Turbine 1500 RPM. Engine Serial #OHD12-C4766. Brushless AC Continuous duty generator. Type SAB. Rated 2760KW. Frame 21120-29. 1800 RPM. 4160/3/60. Power Factor .8. Temp Rise 70C. Serial #328632. Brushless Exciter: type FRBA Frame BE12-6. Field Volts 62.5. Peak Duty 3169KW, Built 1984. Package #CG84054. Gear Box Assembly #E116590-408-930. Serial #GBG16-70162. Unit available with Deltak HRSG 51500 Lb/Hr Steam Boiler. Rated 740PSIG. 14888 Sq Ft Heat Surface. Serial #8910-515-A. National Board #580. Built 1989.

Used 3200 KW Solar Centaur T4701 Wet NoX Gas Turbine Generator Set. Model GC1-CB-ID. Engine Serial #3967C51. Turbine 1500 RPM. Serial #OHE13-C3914. Brushless AC Continuous duty generator. Type SAB. Rated 2760KW. Frame 21120-29. 1800 RPM. 4160/3/60. Power Factor .8. Temp Rise 70C. Serial #328638. Brushless Exciter: type FRBA Frame BE12-6. Field Volts 62.5. Peak Duty 3169KW, Built 1984. Package #CG84055. Epicyclic Gear Box Rated Power 4200HP. INput Speed 14951 RPM. Output 1800 RPM. Ratio 8.3059. Overload Factor 1.1. Assembly #E116590-408-930. Serial #OAAOG-23742. Unit available with Deltak HRSG 51500 Lb/Hr Steam Boiler. Rated 740PSIG. 14888 Sq Ft Heat Surface. Serial #8910-515-B. National Board #581. Built 1989.

Used 3200 KW Solar Centaur T4701 Wet NoX Gas Turbine Generator Set. Model GC1-CB-1D. Engine Serial #3966C51. Turbine 1500 RPM. Serial #OHE13-C3914. Brushless AC Continuous duty generator. Type SAB. Rated 2760KW. Frame 21120-29. 1800 RPM. 4160/3/60. Power Factor .8. Temp Rise 70C. Serial #328637. Brushless Exciter: type FRBA Frame BE12-6. Field Volts 62.5. Peak Duty 3169KW, Built 1984. Package #CG84N55. Gear Box Assembly #E116590-408-930. Serial #GBG15-92542. Rated output 1800 RPM. Unit available with Deltak HRSG 51500 Lb/Hr Steam Boiler. Rated 740PSIG. 14888 Sq Ft Heat Surface. Serial #8910-515-C. National Board #581. Built 1989.
