Used Marion Process Equipment

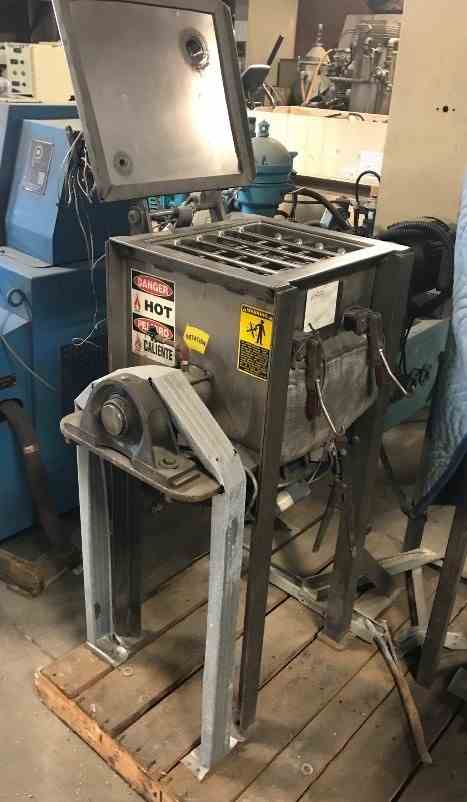

Used approx. 1 Cu.Ft Marion Type Paddle Mixer, Stainless steel. 12" wide X 14" long X 16" deep. Safety grate on top. Hinged top cover. 1/2 HP 3 phase 60 cycle 230/460 volt, 1700 rpm motor with Sew Eurodrive reducer. Center bottom discharge. Mounted with legs.

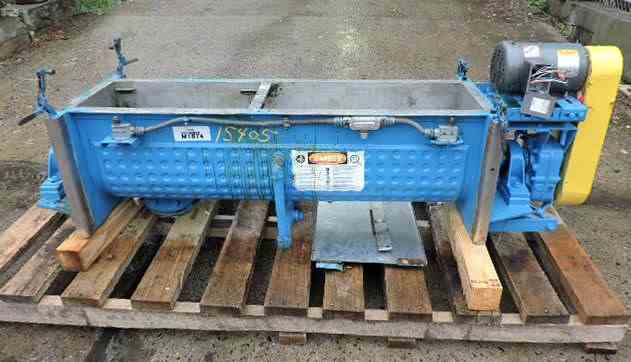

Used 3 Cu ft Stainless Steel continuous paddle mixer. Manufactured by Marion Mixers. Model C1254. Trough 54"L x 12"W x 16"D. Stainless Steel Jacket rated 150PSIG@400F. (12) Bolt-on mixing paddles. 6" Discharge with operated gate. 2HP Motor. Past use polymer processing.

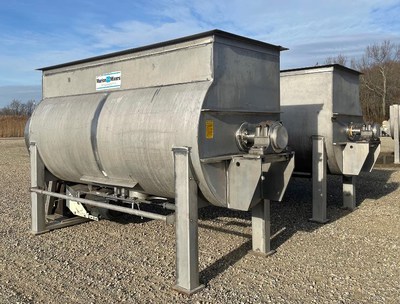

Used 200 Cu. Ft. Sanitary Stainless Steel Paddle Blender. Manufactured by Marion. Model SPY-144. Mixing Chamber: 144" L x 55-1/2" W x 80" Deep. 12" x 22" outlet with slide gate actuated closure. 75 HP Motor, 1770 RPM, 460 Volts, 3 Phase, into gear box. into gear box. Overall Dims. Approx. 186" L x 68" W x 107" H. Mounted on Stainless Legs. Serial #90077. Last used in Sanitary Food Plant.

Used 30 cu ft jacketed stainless steel paddle mixer. Manufactured by Marion. Model FP-3648. 38? wide X 51? deep X 51? long. Full stainless steel jacket including end plates and bolted flat cover. Jacket by Mueller rated 150 psi @ 100F. Closed top with 24? diameter flanged feed port with 24? diameter X 56? long feed tube with 17? X 3' side door, top cover has 6 1/2? flanged opening. 8? diameter off center Norbro Ball valve discharge. Paddle design, with 4 paddles. Driven by 15 HP 3/60/460 volt motor thru dodge reducer. Jacket Serial #11846. National Board #5616. Lase use Coffee beans.

Used 30 Cu Ft Stainless Steel Paddle blender. Manufactured by Marion. Model SPS-3648. 10HP motor. Overall 8'2" x 4'3" x 4'4" with 8" Center bottom Outlet. Serial #11004. Last use Seasoning plant.
