Used KOCH Process Equipment

Phoenix Equipment has a large inventory of used, unused, and reconditioned equipment from KOCH. Phoenix Equipment offers a wide selection of categories from KOCH. If you can't find the exact KOCH equipment you are looking for, contact us and we can help you find it.

Categories
Featured Equipment for Sale
36-dia-koch-hastelloy-distillation-system

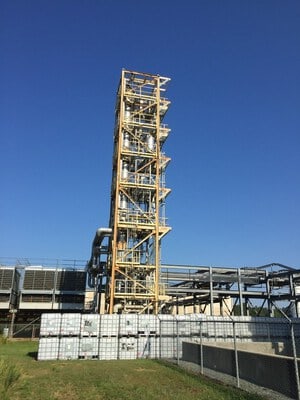

36 " Dia Koch Hastelloy Distillation System
Stock# 15967 Capacity 36 " Dia

Used 36" Dia Distillation Tray Column System designed by Koch Process Technologies Inc. Column manufactured by Dusenbury Engineering Co; (40) Trays. 59'3" TT. Lower 7'3" section Hastelloy C276, Upper section 316L SS. MAWP 50 PSI/FV@400F. Serial #1481A. National Board #3480. Built 1998. Weight 8500 lbs. Housed in a 79'H x 11'6"W skid with a A. (HE-7002) 9 sq ft SS Shell and tube heat exchanger. MFG Rubicon. CS Shell rated 200PSI/FV@450/ (12) 316L Tubes rated 100psi/FV@400F. Serial #2609-2. National Board #2338. Built 1998. B. (CL-7001) Dusenbery engineering pressure vessel rated 50 SPI/FV@400F. Serial #1493A. National Board #3471. Built 1998. C. (HE-7007) 305 Sq ft Tranter SuperChanger Plant and Frame heat exchanger. Model 06-T26-HP-52. (95)Plates MAWP 100PSI@230F. Serial #21220. Built 1998. D. (HE-7005)305 Sq ft Tranter SuperChanger Plant and Frame heat exchanger. Model 06-T26-HP-52. (95)Plates MAWP 100PSI@230F. Serial #21219. Built 1998. E. (PU-7004) Used 2HP Kontro GT pump. 10 GPM@63'TDH. Size 1 x 1 x 5. F. (TK-7001) 150 Gallon SS Reflux Tank. Design pressure 50PSIG/FV@400F. G. (PU-7003) Used 2HP Kontro GT pump. 10 GPM@63'TDH. Size 1 x 1 x 5. H. (HE-7001) Used 50 Sq Ft Vertical Shell and Tube heat exchanger. Mfr Rubicon. CS Shell and (16) 316L Tubes Rated 100PSI/FV@400F. Serial #2609-1. National Board #2340. Built 1998. I. (HE-7004) 50 Sq Ft Horizontal SS Shell and Tube Heat Exchanger. (26) 316L SS Tubes designed 100PSI/FV@400F. Shell 100PSIG@330F. J. (PU-7002) Used 7.5HP Kontro A-Range Hastelloy pump. 280 GPM@50'TDH. Size 6x4x8H. K. (HE-7003) 832 Sq Ft Vertical Shell and Tube heat exchanger. CS Shell rated 200PSI@450F. (222) Hastelloy C276 Tubes rated 50PSI/FV@350. Serial #2609-3. National Board #2349. Built 1998. L. (HE-7006) 19 Sq Ft Shell and Tube Heat exchanger. Mfg Rubicon. CS Shell rated 100PSI@330F. (12) Hastelloy C276 tubes rated 100PSI/FV@400F. Serial #2609-5. National board #2344. Built 1998.

40-dia-koch-304l-stainless-steel-tray-column

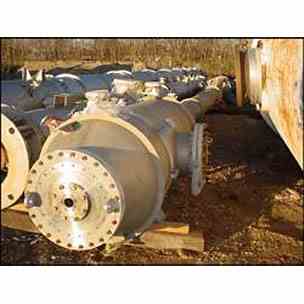

40 " Dia KOCH 304L Stainless Steel Tray Column
Stock# 3521 Capacity 40 " Dia

Unused 40" diameter Koch Extraction Column, 304L stainless steel construction, 40" diameter upper section x 20" diameter middle section x 40" diameter lower section x 53'1" overall straight side, dished bottom, rated 50 PSI and full vacuum @ 400 degrees F internal, sectional design with 40" diameter x 10' long upper and lower sections, 20" diameter x 34' middle section with 31' plate stack section divided into (3) sections with top entering drive with mechanical seal, 825 gallon capacity, certified by Dusenbery Eng., Serial No. 1544A, National Board No. 3528, new 1998 and never installed.

268-sq-ft-koch-carbon-steel-shell-tube-heat-exchanger

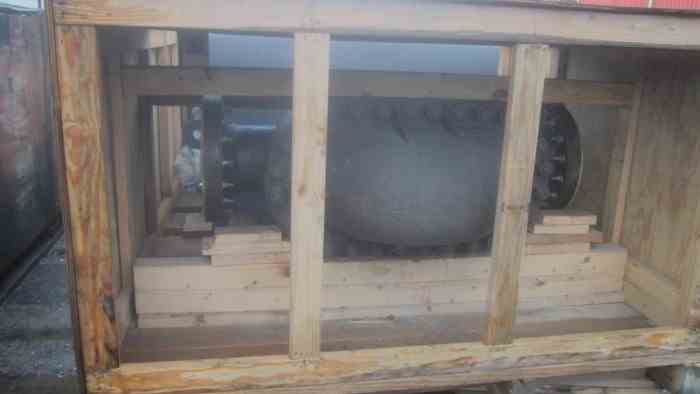

268 Sq Ft KOCH Carbon Steel Shell & Tube Heat Exchanger
Stock# 11746 Capacity 268 Sq Ft

UNUSED KOCH 268 SQUARE FOOT SEPARATED CLOSURE HAIRPIN HEAT EXCHANGER. CARBON STEEL SHELL AND TUBE, 12" DIAMETER X 96" LONG TUBE LENGTH. RATED 1000/PSI FV AT 365 DEGREES F SHELL AND TUBE SIDE. HAIRPIN HAS A CAST REMOVABLE HOUSING COVER. REMOVABLE TUBE BUNDLE. DESIGNED WITH U-TUBE WITH FLOATING HEAD. MODEL 12096-MTB-AAC. YEAR 2008.

358-sq-ft-koch-carbon-steel-shell-tube-heat-exchanger
358 Sq Ft KOCH Carbon Steel Shell & Tube Heat Exchanger
Stock# 17335 Capacity 358 Sq Ft

Unused Koch 358 sq. ft. Separated Closure Hairpin Heat Exchanger. Model 12144-MTB-ABC. Carbon steel shell and tube 12" diameter X 144" long tube length. Shell rated 695/FV @ 400F. Tube side 75/FV @400F. Designed for shell side split flow with each leg in parallel. Cast removable housing cover on hairpin. Designed U-tube with floating head. Serial #10662-08-1-01. Built 2008.
