Used JH Day Process Equipment

Phoenix Equipment has a large inventory of used, unused, and reconditioned equipment from JH Day. Phoenix Equipment offers a wide selection of categories from JH Day. If you can't find the exact JH Day equipment you are looking for, contact us and we can help you find it.

Categories
Featured Equipment for Sale
115-cu-ft-jh-day-304-stainless-steel-nauta-mixer
115 Cu Ft JH Day 304 Stainless Steel Nauta Mixer
Stock# 11988 Capacity 115 Cu Ft

Used J.H. Day Mark II Nauta Mixer, Approximate 115 Cubic Feet Working Capacity, 304 Stainless Steel. Approximate 72" diameter x 130" non-jacketed cone height. Bolt on top cover with openings. Approximate 14" diameter screw with pintle bearing support, driven by a 15hp, 3/60/230/460 volt, 1750 rpm motor thru a gearbox, arm driven by a 2hp, 3/60/230/460 volt, 1730 rpm motor. 8" Side bottom outlet. Mounted on (4) carbon steel side lugs. Serial# 88402.

76-cu-ft-jh-day-nauta-mixer

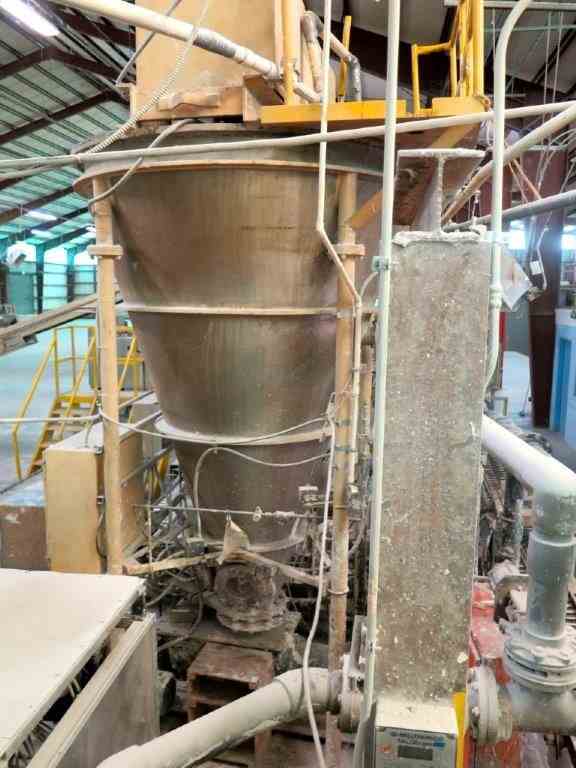

76 Cu Ft JH Day Nauta Mixer
Stock# 11127 Capacity 76 Cu Ft

Used 76 Cu.Ft. (2,150 L/560 gal) JH Day 304-Stainless Steel, Full Vacuum Rated Nauta Mixer system/Conical mixer. Model MK 2 FB-76. 304 Stainless Steel. Has 20 HP, 230/460 volt, 1800 rpm drive for orbital arm with 3 RPM output and 3 HP, 230/460 volt motor for screw with 120 RPM output. Approx. 12'4" from top of blender to bottom. Includes 5HP Kinney Liquid ring vacuum pump model 75-KF and 15 HP Moyno model 2II065G2 CDR discharge pump. S/N: FB-76. Previously used for drywall materials

177-cu-ft-jh-day-nauta-mixer

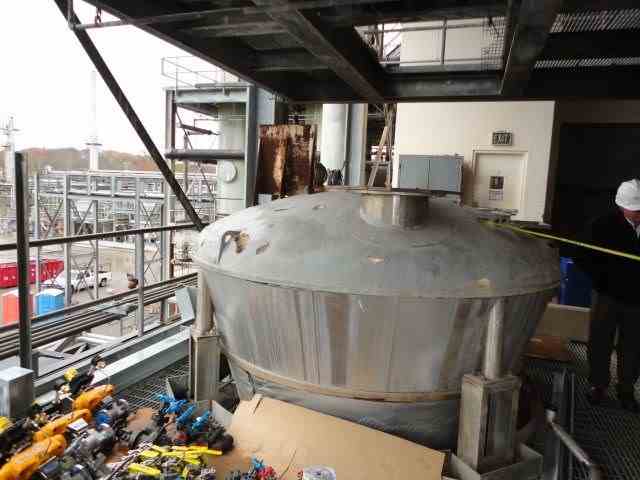

177 Cu Ft JH Day Nauta Mixer
Stock# 12024 Capacity 177 Cu Ft

USED JH DAY 177 CUBIC FOOT 316L STAINLESS STEEL NAUTA MIXER. RATED VACUUM INTERNAL, JACKET 125 PSI @ 353°F. NEW 1988. SERIAL NO. 1679.

150-cu-ft-jh-day-304-ss-nauta-mixer

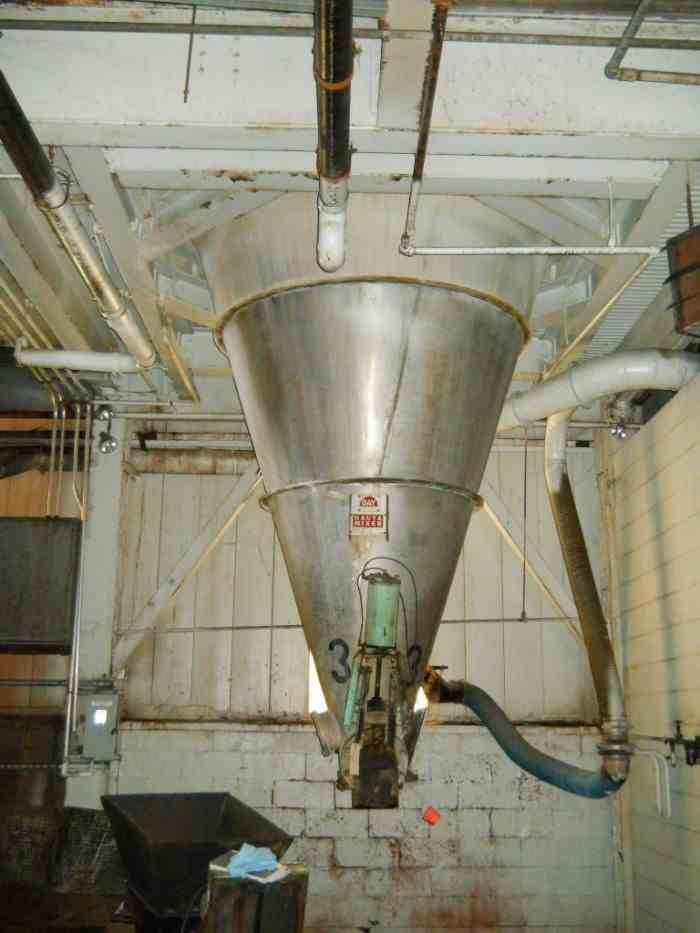

150 Cu Ft JH Day 304-SS Nauta Mixer
Stock# 12025 Capacity 150 Cu Ft

USED JH DAY 150 CUBIC FOOT 304 STAINLESS STEEL NAUTA MIXER. 8' DIAMETER X 12'. SINGLE SCREW. 15 HP/2 HP DUAL MOTOR.

70-cu-ft-jh-day-nauta-mixer

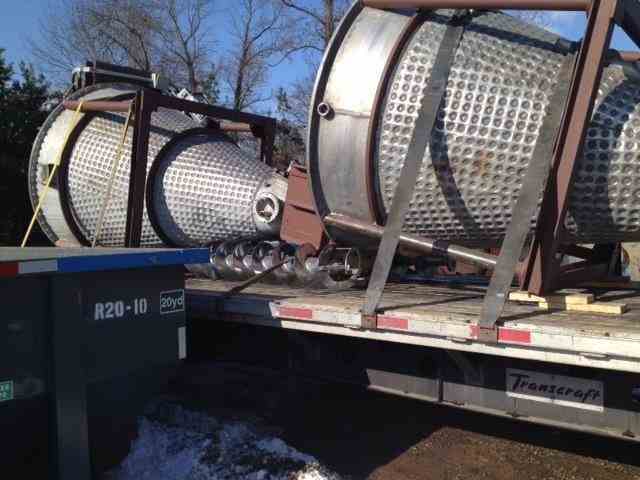

70 Cu Ft JH Day Nauta Mixer
Stock# 12091 Capacity 70 Cu Ft

USED 70 CUBIC FT JH DAY MODEL MBX 700 NAUTA VACUUM DRYER-MIXER. STAINLESS STEEL CONSTRUCTION, 40 HP MAIN DRIVE, 2 HP DRIVE FOR ORBITING OF SCREW. TOP IS 76" DIAMETER, WHICH TAPERS DOWN TO A 12" CONE BOTTOM. FLAT BOLTED TOP. TOP FITTINGS; (3) 6", (4) 2", AND A 12" X 24" RECTANGULAR MANWAY. 12" DIAMETER SCREW. SIDE BOTTOM DISCHARGE WITH (1) 4", (1) 8" SIDE BOTTOM OULETS. INTERNALS ARE HIGHLY POLISHED FINISH. WITH STAINLESS STEEL DIMPLED JACKET ON THE SHELL, JACKET IS ASME CODE STAMPED FOR 125 PSI @ 353 DEG F , INTERNAL RATED FULL VACUUM. MOUNTED ON STRUCTURAL FRAMEWORK.

70-cu-ft-jh-day-nauta-mixer
70 Cu Ft JH Day Nauta Mixer
Stock# 12092 Capacity 70 Cu Ft

USED 70 CUBIC FT JH DAY MODEL MBX 700 NAUTA VACUUM DRYER-MIXER. STAINLESS STEEL CONSTRUCTION, (NOTE: Missing the 40 HP MAIN DRIVE), 2 HP DRIVE FOR ORBITING OF SCREW. TOP IS 76" DIAMETER, WHICH TAPERS DOWN TO A 12" CONE BOTTOM. FLAT BOLTED TOP. TOP FITTINGS; (3) 6", (4) 2", AND A 12" X 24" RECTANGULAR MANWAY. 12" DIAMETER SCREW. SIDE BOTTOM DISCHARGE WITH (1) 4", (1) 8" SIDE BOTTOM OULETS. INTERNALS ARE HIGHLY POLISHED FINISH. WITH STAINLESS STEEL DIMPLED JACKET ON THE SHELL, JACKET IS ASME CODE STAMPED FOR 125 PSI @ 353 DEG F, INTERNAL RATED FULL VACUUM. MOUNTED ON STRUCTURAL FRAMEWORK.
