Used American Process Process Equipment

Used American Process Systems Forberg Fluidized Zone Mixer, Model FZM-35, 35 Cubic Feet Working Capacity, 304 Stainless Steel. Non-jacketed chamber approximate 58" long x 67" wide. (2) 4" Diameter shafts with (16) paddles per shaft, paddles 11-9/16" wide x 3/8" thick welded to 1-1/2" diameter posts. Driven by 30 HP, 3/60/208-230/460 volt, 1760 rpm motor with 30.05:1 gearbox ratio. (2) 20" x 20" side access doors, (2) 9" x 57" Bombay door style outlets. Includes stainless steel stand, bag dump station. Serial# F1041. Built 1995. Last use: Cereal.

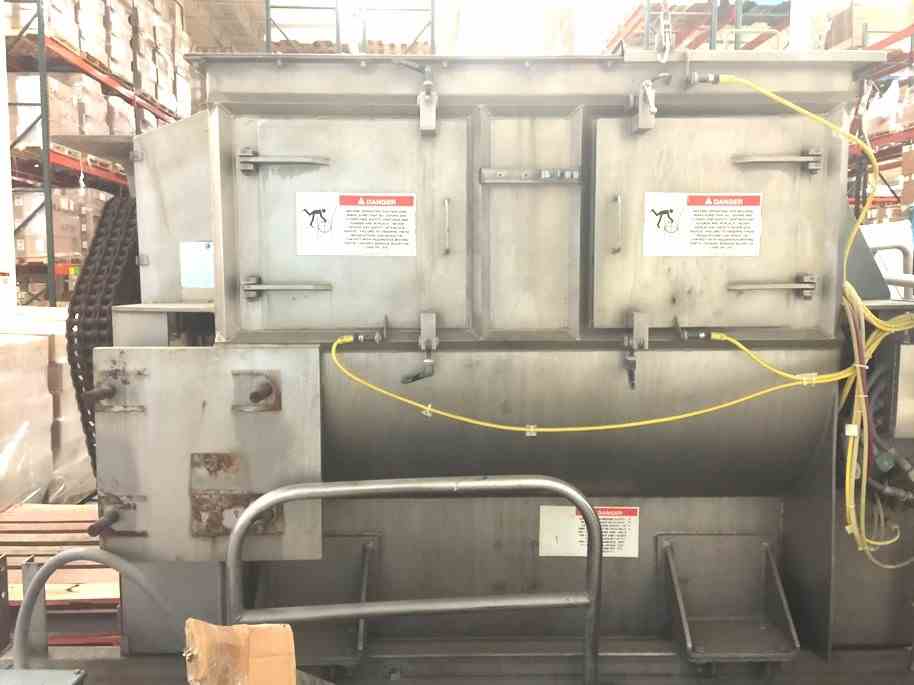

Used American Process Systems Paddle Blender model FZM-53 (53 Cu.Ft./1500 Liter) Twin Shaft Fluidized Zone Mixer/Paddle blender. 304 Stainless Steel. 30 HP 230/460 volt motor. Mixer paddles are 25 RPM. Includes Control Panel. Last used in a sanitary application in pharmaceutical plant. As per American Process Systems, Fluidized Zone Mixers, provide quick yet gentle blending, short cycles, low operating costs, minimal product degradation and one of the highest production capacities of any other mixer type. Unit can come with Drum Dumper and mezzanine structure for additional cost.

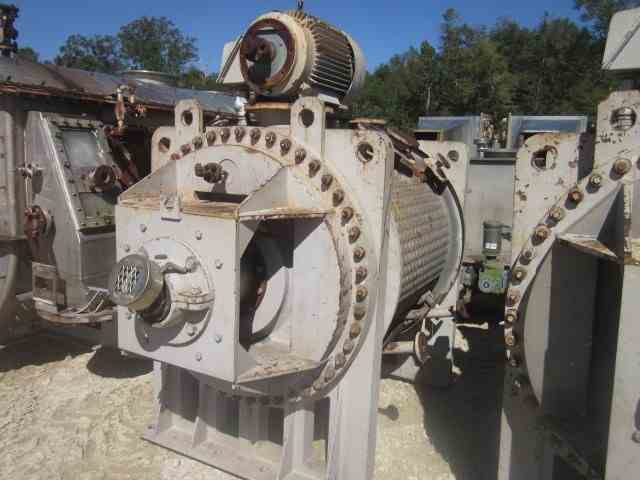

Used 44 Cu Ft American Process (div Eirich Machines) Jacketed Paddle Blender. CS Shell Rated 200PSI@400F. Jacket rated 125PSI/FV@400F. 50 HP Motor. Serial #8830-USA. National Board #98. Built 2009. (Qty 2 available)

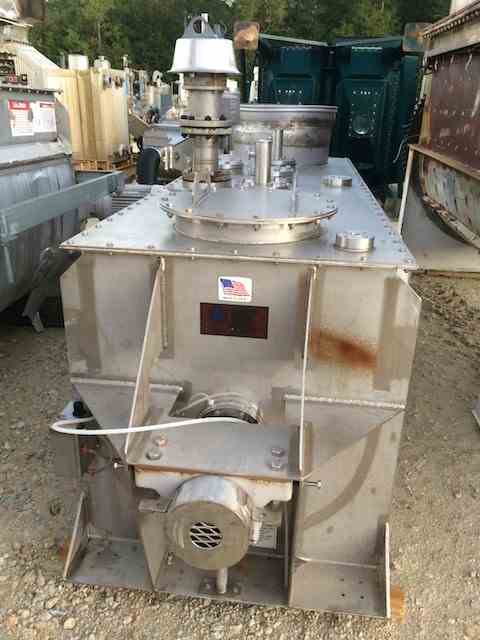

Used 60 Cu Ft 304L Stainless Steel Double Paddle Blender. Mfg by American Process (div. Eirich Machine). Sanitary Polished 304LSS. 20HP Motor. Twin Paddles. Bottom Discharge. Built 2009.

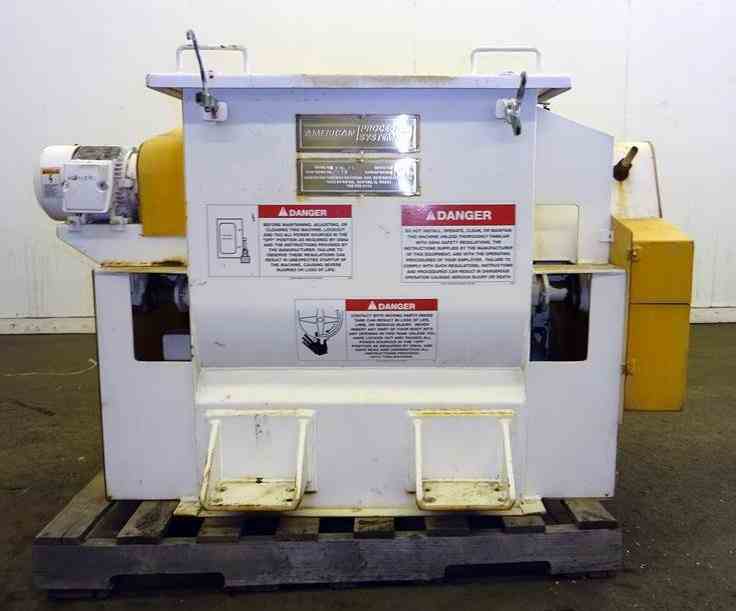

Used 26 Cu Ft American Process Fluidized Zone Twin Shaft Mixer. Model FZM26S. Stainless steel construction. 52" x 39.5" mixing chamber, dual shafts driven by approximately 15 hp motor. Serial# 4741. Built 1997.

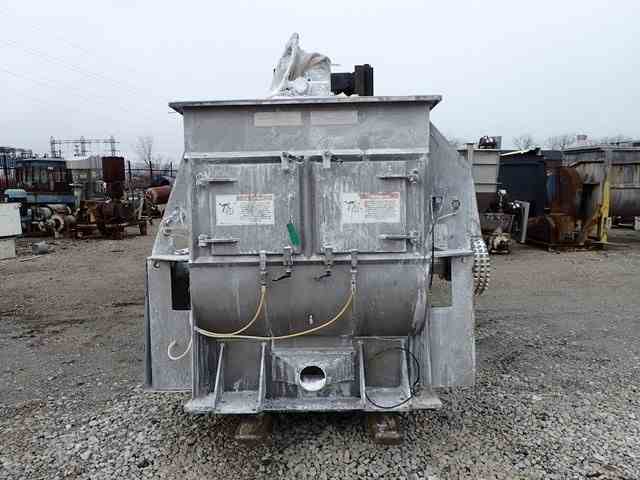

Used 24 Cu Ft Stainless Paddle Mixer. Mfg American Process. Model TD24. 304 Stainless Steel Sanitary. 30"D x 84"L chamber. Top charge ports, (2) side access doors. 30 HP Motor. Built 1995.
