Used Alloy Fab Process Equipment

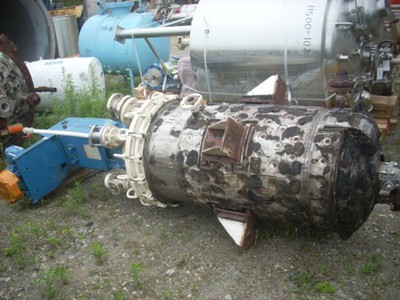

Used approximately Alloy Fab 100 gallon 316 Stainless Steel dimple jacketed reactor. Internal rated 50 PSI/ Full vacuum at 400 degrees F. Jacket rated 75 PSI @ 400 degrees F. Lightning Drive with mechanical seal, 5 HP, 3 phase, 60 cycle, 230/460 volt, 1750 rpm motor. Vessel is 24" diameter X 48" straight side. Bolted dished top. Dished bottom head. Top openings: 8" agitator opening, (1) 4" opening for sight glass, (1) 3" nozzle, (1) 3" opening for sight glass, (1) 2.5" opening, (1) 2" opening. (1) 1" opening. 2" center bottom outlet. NB 1982. SN 2924. Built 1986.

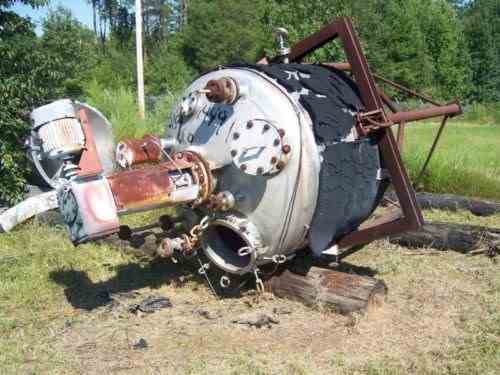

USED ALLOY FAB 700 GALLON INCOLOY JACKETED REACTOR, INTERNAL RATED 75 PSI @ 300 DEG F, JACKET RATED 120 PSI @ 300 DEG F. WITH DRIVE. BUILT 1982, NB# 1407.

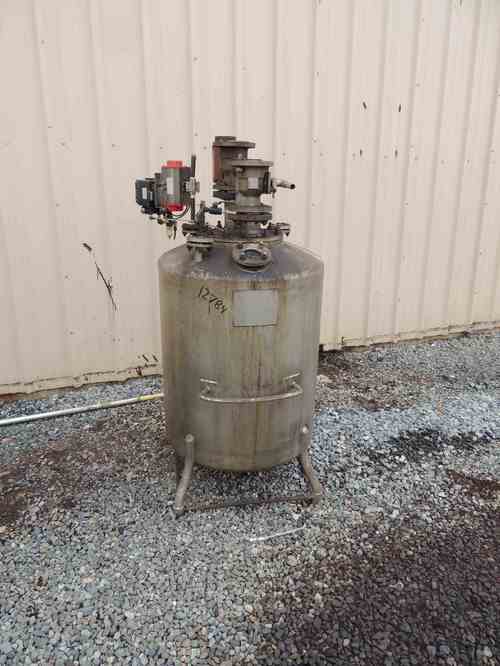

Used Alloy Fab Pressure Vessel. Approx 100 gallon. Rated 30PSI/FV @300F. Dimensions 24"D x 48"H. (4) Leg mounted National Board #76. Serial #640. Built 1965.

Used 1500 gallon 316 Stainless Steel reactor. Manufactured by Alloy Fab. Internal rated 90PSI/FV @390F. Jacket rated 90PSI @390F. Agitator. Dished heads. Lug mounted. 316L stainless steel 3" half pipe coil jacket on shell o.d. and bottom head. National Board #1758. Serial #2890. Built 1986. Previously used in API facility.

Used 1500 gallon 316L Stainless Steel reactor. Manufactured by Alloy Fab. Internal rated 90PSI/FV at 390F. Jacket rated 230PSI @ 450F. Agitator. Dished heads. Lug mounted. National Board #1757. Serial #2889. Built 1986. Previously used in API facility.
