Used Alfa Laval Process Equipment

Phoenix Equipment has a large inventory of used, unused, and reconditioned equipment from Alfa Laval . Phoenix Equipment offers a wide selection of categories from Alfa Laval . If you can't find the exact Alfa Laval equipment you are looking for, contact us and we can help you find it.

Categories
Featured Equipment for Sale
17-72-dia-alfa-laval-aldec-506-decanter-centrifuge

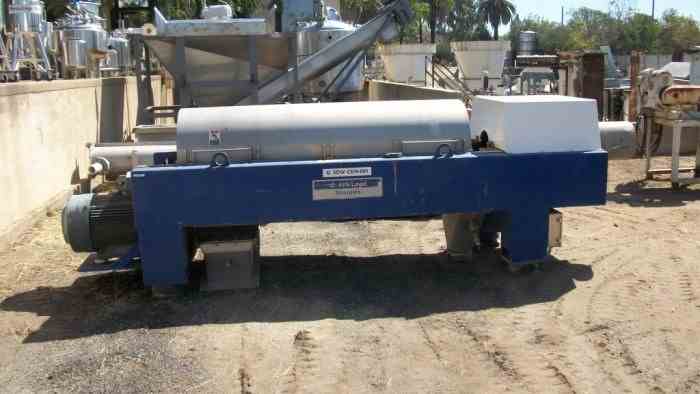

17.72 " Dia Alfa Laval Aldec 506 Decanter Centrifuge
Stock# 12941 Capacity 17.72 " Dia

Used Alfa Laval Aldec 506 horizontal decanter centrifuge. Stainless steel contact parts. Bowl diameter 17.72". Total bowl length 75.20". Max speed 3250 rpm. G force 2657 G. Contact parts T316 stainless steel. Main drive 75 hp. Back drive 15 HP. Gear box. Serial Number 5020963. Max Solids density 1.2 kg/dm3. Min feed temperature 0 degrees C (32 degrees F). Max feed temperature 100 degrees C. (212 degrees F). Overall dimensions 43.7" wide X 180.28" long X 50.04" high. Weight 4.2 ton.

30-liters-alfa-laval-fermenter-bioreactor

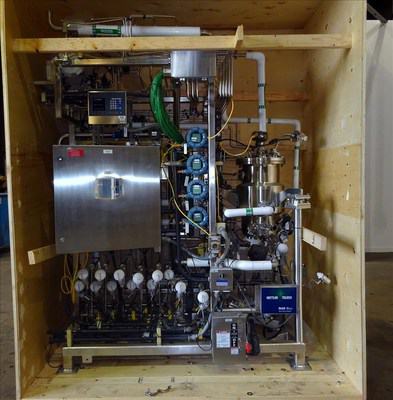

30 Liters Alfa Laval Fermenter / Bioreactor
Stock# 13441 Capacity 30 Liters

Unused Alfa Laval Fermenter / Reactor, Approximate 30 Liter, Stainless Steel, Vertical. Internal rated 45 PSI/FV at -20 to 400 degree F. Jacket rated 150 psi/FV at -20 to 400 degree F. Bottom entering agitation 1/2hp drive, missing agitator. (1) Spray ball. Side lug mounted with load cells. National Board #264. Serial #786-100/17. Built 2004. Includes control panel with Wedgewood technology model 653 absorbance monitor, Mettler toledo Jag xtreme digital read out, (4) metering valves. All mounted on stainless steel frame.

4682-sq-ft-alfa-laval-stainless-steel-plate-heat-exchanger

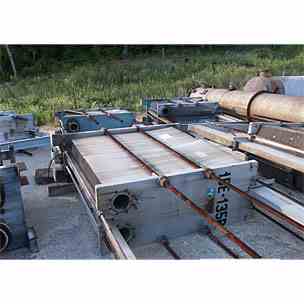

4682 Sq Ft Alfa Laval Stainless Steel Plate Heat Exchanger
Stock# 3870 Capacity 4682 Sq Ft

Used 4682 Sq.Ft. 316 Stainless Steel Alfa Laval plate and frame heat exchanger. 592 Stainless Steel plates. 6 inlet/outlet. Rated 150 psi @ 302 F. Model # A15-BFG. Built 1992. National Board # 6210 and 6211 (Qty - 2 Available)

667-sq-ft-alfa-laval-spiral-heat-exchanger

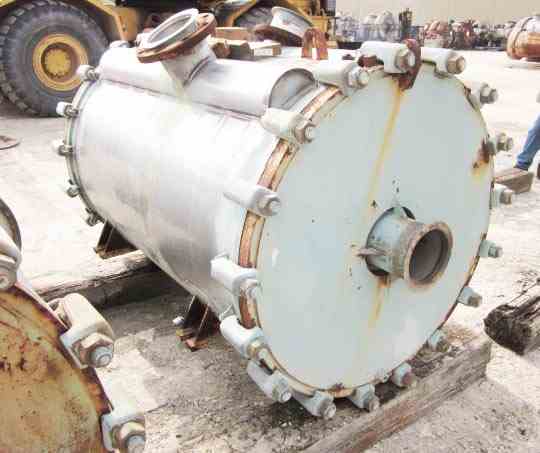

667 Sq Ft Alfa Laval Spiral Heat Exchanger
Stock# 5254 Capacity 667 Sq Ft

Used 667 Sq Ft 316-SS Spiral Heat Exchanger. 316-SS Shell: 74 PSI @ 228 deg F; 316-SS Tube: 74 PSI @ 228 deg F. Heads: 316L-SS Clad. 3' 3" Shell diameter. 5' Tube length (OAL - 6' 4"). Shell nozzles: (2) 6"; Tube nozzles: (2) 6". (MFG. BY ALFA LAVAL-FRANCE; BUILT IN 1985; MODEL I-H; 61.96 SQ. METER; CHANNEL "A" & "B" 5 BAR @ 109 DEG. C.; CHANNEL "A" SPACING .551"; CHANNEL "B" SPACING .629"; CYLINDER HEIGHT 1500 MM; CYLINDER DIAMETER 1000 MM; CHANNEL "A" VOLUME 520 LITERS; CHANNEL "B" VOLUME 610 LITERS.)

105-sq-ft-alfa-laval-stainless-steel-plate-heat-exchanger
105 Sq Ft Alfa Laval Stainless Steel Plate Heat Exchanger
Stock# 5879 Capacity 105 Sq Ft

Used 105.78 Sq. Ft. (Cap 6.56 US gallons ) 316 Stainless Steel (Plates) Alfa Laval Plate and Frame Heat Exchanger, Type M10-BFG. 100 PSI at 300 F. Built 1992. Serial # 67814

1712-sq-ft-alfa-laval-spiral-heat-exchanger
1712 Sq Ft Alfa Laval Spiral Heat Exchanger
Stock# 6501 Capacity 1712 Sq Ft

Used 1,712 Sq. Ft. (159.1 Sq. M) 316L Stainless Steel Alfa Laval (Neveres, France) spiral heat exchanger. Rated 130.56 psi (9 Bar) at 32/392 F (0/200 C) on chamber A; rated 87 psi (6 Bar) at 32/392 F (0/200 C) on chamber B. Serial # 18456, Built 1991. Weight – 11,243 lbs (5100 Kg).
