Phoenix Equipment buys and sells unused, used and reconditioned Air Handlers.

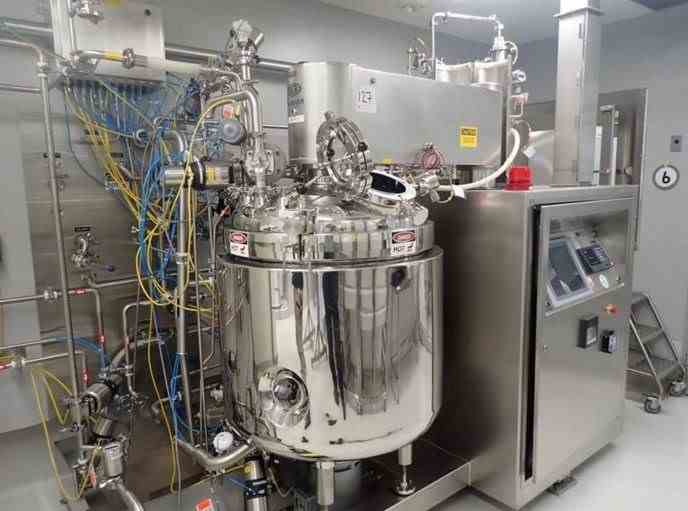

Used Krieger AG 75 Gallon (300 Liter) Stainless Steel Vacuum Homogenizing System. Manufactured by Krieger AG. Model MMD300. Top and bottom agitated, includes load cells w/ Mettler Toledo Jaguar weight indicator. PanelView Plus 1500 touch-screen controls, control panel, and all associated valves, (2) valve control panels, filters, and pipe. Serial #200400.
Unused and Never Installed 42 TPD at 100% (Product 32%) HCl Synthesis Unit, manufactured by SGL Carbon (Germany), Type S-660e, Bottom Fired, Built 2015. Reaction temperature above 2000 °C (3630 °F). Unit includes burner, absorber, combustion chamber and scrubber. Turn down ratio 25% of nameplate capacity or 20% for tailor made design. Production uptime greater than 99.9%. Outstanding safety system: automatic startup and shutdown with nitrogen purge in case of any failure. Less than 1 ppm of free Cl2 in product. Typically 5% H2 excess in combustion. Spares: 2 pieces inner burner tubes; 1 piece outer burner tube; 3 pieces rupture disc in DIABON; 1 piece sight glass; 1 set gaskets complete; 1 piece infrared photocell; 1 piece quartz rod for flame guard; 2 set electrode for pilot burner. Note: Unit was designed for 52.8 TPD caustic soda plant (plant #431: http://phxequip.com/plant.2294/caustic-soda-plant-18-000-tpy.aspx)
UNUSED Glycol Feed System by NEPTUNE, Model G-50-1 with 50 Gal Olyethelyne Tank, 22" dia x 32" S/S in Steel frame. 1.5GPM Bronze rotary pump be Leeson, 1/3 HP, 115V/3ph/60hz, 1725 RPM. Nema 4X control panel w/ H-O-A switch. pump om light, low level indicator. Built 2003. Includes Manual & wiring diagram. Dims: 35" x 27" x 52" H, Approx 250 lbs.
Used skid mounted Carbon Steel Duplex strainer filter system. Manufactured by Hayward Industries. 1'0" dia x 3'9.188" tall Each filter housing. Rated 162FV @ 150F. 8" inlet & 8" outlet. Built 2000.
Used (2) Pumps on single skid. Manufactured by Howard Welding. Rated 16 psi @200F. Serial # H.40.0. Built 1994.
Unused 792 gallon 304 Stainless Steel vertical extraction tank. Model DT-3.0m3. with Solvent feeder system, 1.5Ton batch screw press, 95 gallon 304 SS Buffer tank with respirator, Cleaning ball and lever indicator. 1.1m2 Duplex filter, 1479 gallon 304 SS Storage tank. Model ZG5.0m3 with respirator, Cleaning ball and lever indicator. 792 gallon Stainless Steel mix tank. 4.0kW 3-blade agitator. Model JBG-30m3. 1m3 Filter vat with quick-opening manway. 50m2 2304SS Single effet condenser with heating chamber, evaporator, condenser and cleaing ball.Model DJN-1000. 2m2 SS Dewaxing filter. 1479 Gallon 304 Stainless Steel Storage tank. Model ZG-5.0m3. with platforms. Designed as CBD Oil extraction unit.
Fill out our quick and easy quote form for more information about our Air Handlers inventory.
