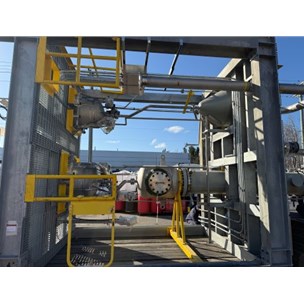

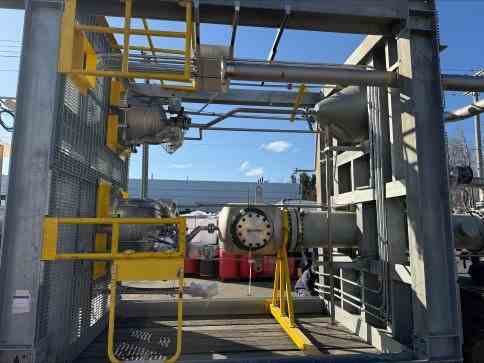

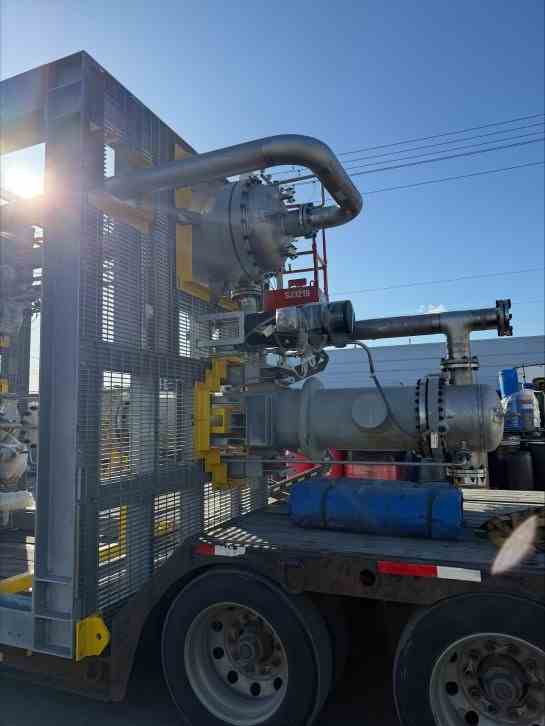

PET SSP Pilot Plant
Other Views - click image for larger view
PET SSP Pilot Plant

PET SSP Pilot Plant

Stock # 605
Capacity 1 TPD
Products PET Chips

Overview

Never used, never installed PET SSP pilot plant. This batch production of Polyethylene Terepthalate (PET) uses Dimethyl Terephthalate (DMT) and Ethylene Glycol (EG) as basic raw materials. DMT can be melted from recycled PET bottles or purchased virgin DMT from market. The plant is divided into five steps: Premelting system, Ester Exchange system, Polycondensation system, Chip Making system, Solid State Polymerization (SSP) system. DMT specification: white flake or powder, purity >= 99.9%, melting point 139 – 142 °C, acid =< 0.03 mg KOH/g). MEG specification: transparent or clear liquid, purity >= 99%, total aldehydes =< 75 ppm, water =< 0.1 wt%. Utility consumption per ton of PET: power 684 KWH, cooling water 140 tons, natural gas 36 Nm3.

Major Equipment

DMT premelter
Ester Exchanger Air Cooler
Ester Exchanger
Ester Exchanger Column with Condenser
PP Reactor
PP Condenser
PP Separator
Chip Cutter
SSP Vacuum Buffer Tank
SSP Vacuum Filter
HTM Expansion Tank
Share
SPECIFICATIONS RESOURCES
Year Built 2021
Year Shut
Capacity 1 TPD
Plant Design/Technology Chemtex
Raw Material DMT (from recycled PET bottles), MEG
Products PET Chips
Subcategory Polyethylene Terephthalate (PET) Plants
