Home » Equipment » Reactors » Glass Lined Reactors » 4000 Gal Pfaudler Glass Lined Reactor

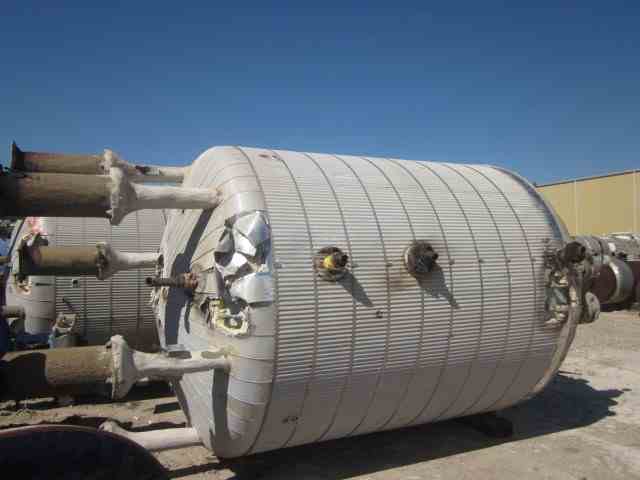

Used 4000 gallons glass lined reactor. Manufactured by Pfaudler. Shell rated 100 PSI @450F. Jacket rated 90PSI/FV@450F. (6) Leg mounted. 18" Top manway. 4" Bottom outlet. National Board #47860. Serial #R194-0063. Built 1995.
