3000 Gal Mitsubishi Rayon T304 Stainless Steel Reactor Body
Other Views - click image for larger view
3000 Gal Mitsubishi Rayon T304 Stainless Steel Reactor Body 3000 Gal Mitsubishi Rayon T304 Stainless Steel Reactor Body 3000 Gal Mitsubishi Rayon T304 Stainless Steel Reactor Body

3000 gal mitsubishi rayon t304 stainless steel reactor body

Stock # 22271
Capacity 3000 Gal

Overview

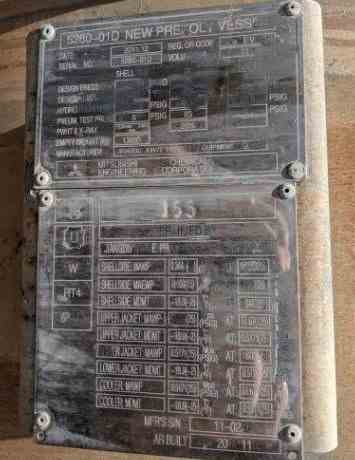

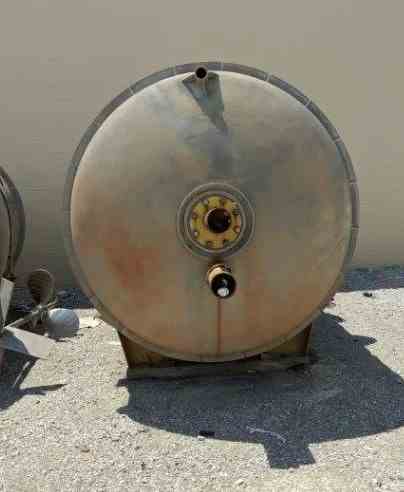

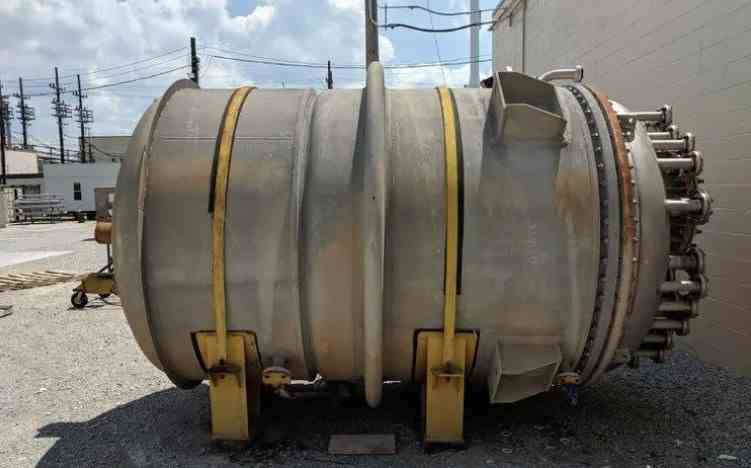

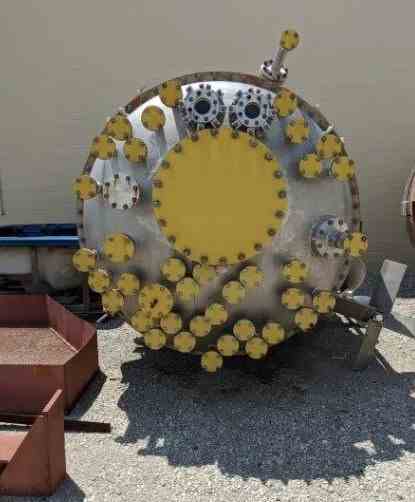

Unused 3000 gallon stainless steel jacketed reactor body. Manufactured by Mitsubishi Rayon. Internal rated 50/FV @320F. Jacket rated 75psi @320F. Center bottom outlet, bolted dished top, 2:1 elliptical dished heads, expansion joint, lug mounted, various top nozzles, shell 18mm thick, bottom head 21mm. Set up for top mounted drive and agitator. National board #155, serial #5280-01D. Built 2011.

Share
SPECIFICATIONS TERMS & CONDITIONS RESOURCES
Manufacturer
Mitsubishi Rayon
Model
NA
Material
T304 stainless steel
Capacity
3000 Gal
